Stairs/corridor controllers

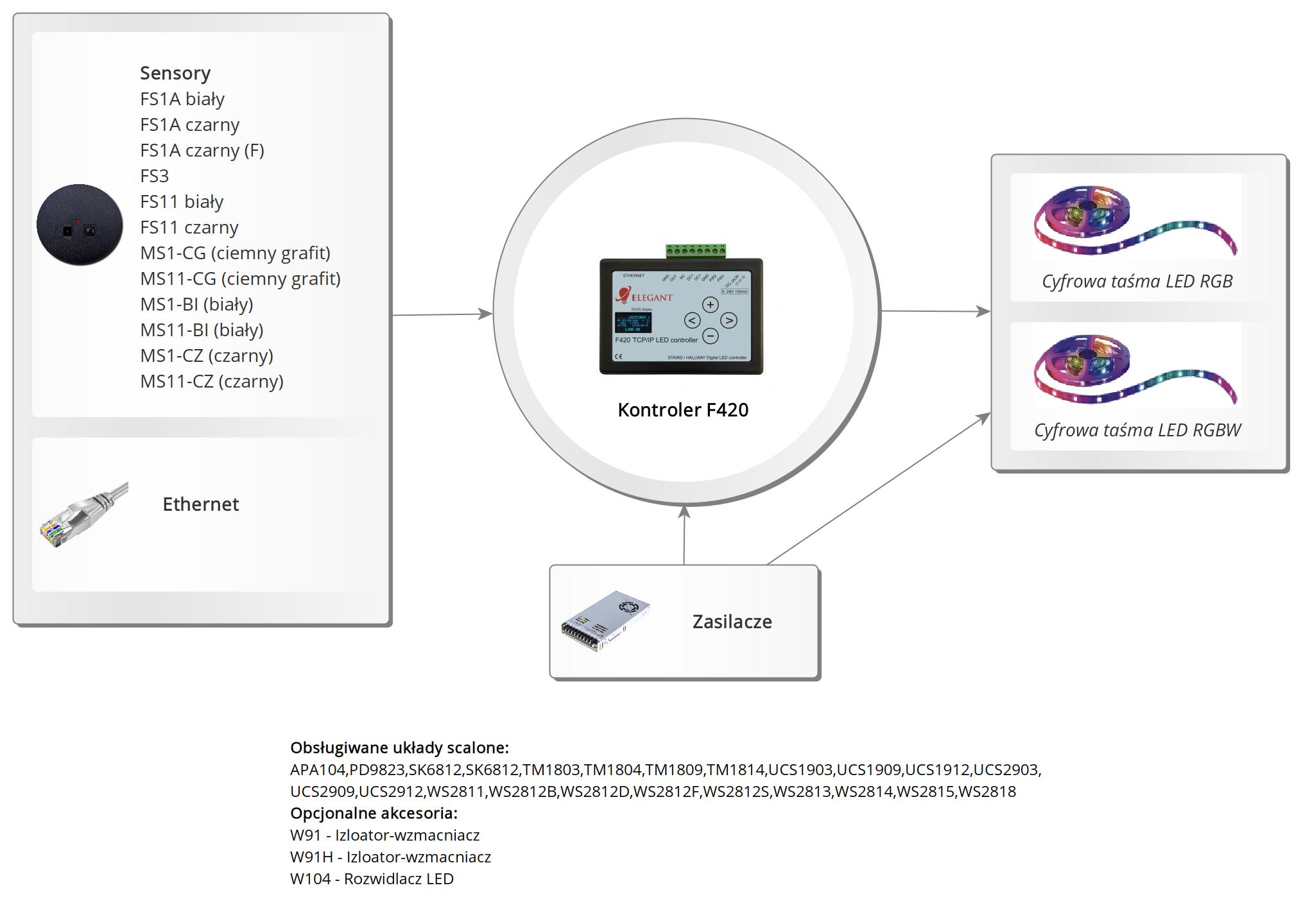

Network Controller for stairs and corridors, supporting digital LED strips. The device is suitable for handling all types of tapes, both RGB and RGBW. The controller allows you to achieve the effect of animating the illumination of stairs or a corridor. The backlight is activated by a motion sensor (e.g. Elegant FS1A).

• 1000 pixel support (RGB)
• 700 pixel support (RGBW)

Elegant F420 Network Controller manual

The F40 Stairway Controller allows for an animated (unfolding) lighting effect for stair steps. The controller works with reflective motion sensors (visible in the diagram), which detect a person walking up the stairs. The presence of a person triggers an animation that unfolds in the direction of their movement. The animation “folds” back after a set time. The device has a corridor mode of operation, however, a dedicated corridor controller F46 with more functions and effects is recommended.

• the controller allows to create animated lighting effects for stairs (or corridors)
• the lighting is triggered by a motion sensors (visible in the diagram) or monostable (bell) buttons
• 67 effects in stairway mode
• 28 effects in corridor mode
• supports 700 or 1000 pixels depending on the strip
• the lighting is activated by two motion sensors, depending on the direction of movement (up or down)
• supports all types of RGB, RGBW, MONO, CCT, RGB+CCT

Elegant F40 LED Stair Controller manual

The F46 Corridor Controller allows for an animated (unfolding) lighting effect for corridors or stair steps. The controller works with reflective motion sensors (visible in the diagram), which detect a person walking up the stairs.

• the controller allows to create animated lighting effects for corridors
• the lighting is triggered by a motion sensor (e.g. Elegant FS1A)
• supports 700 or 1000 pixels depending on the strip
• supports all types of RGB, RGBW, MONO, CCT, RGB+CCT

Elegant F46 LED Corridor Controller manual
Example videos
Video tutorials

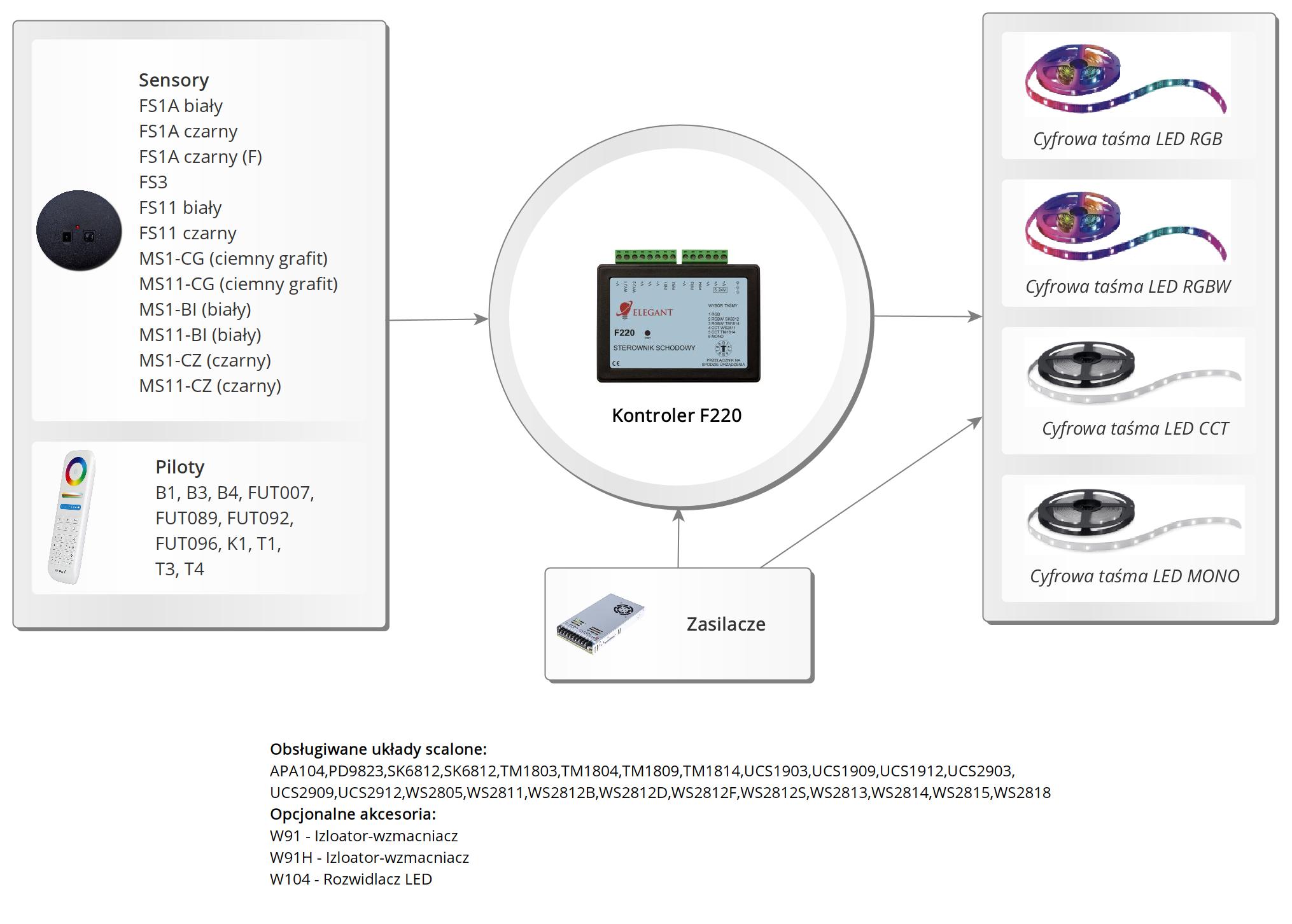

Stair Controller supporting digital LED strips. The controller allows you to achieve the effect of animating the illumination of two sections of the stairs, i.e. the section from the base of the stairs to the landing, and from the landing to the top of the stairs. The backlight is activated by a motion sensor (e.g., Elegant FS1A), which detects a person climbing the stairs. The presence of a person triggers an animation that unfolds in the direction of their movement. The animation "rolls up" after a set time.

• 2 x 500 pixels support (RGB)
• 2 x 350 pixels support (RGBW SK6812)
• 2 x 350 pixels support (RGBW TM1814)
• 2 x 500 pixel support (CCT WS2811)
• 2 x 350 pixels support (CCT TM1814)
• 2 x 500 pixels support (MONO)

Elegant F220 LED Stair Controller manual
